Транспортер наклонной камеры в сборе (TC5080/56) 84971281, 47558523

Артикул: 47558523

(0 голосов)

Транспортер наклонной камеры в сборе (TC5080/56) 84971281, 47558523

25 222.00 грн.

Количество:

Купить в один клик

Производитель:

Ri.Ma (Италия)

К сравнению

Описание

Транспортер наклонной камеры в сборе (TC5080/56) 84971281, 47558523

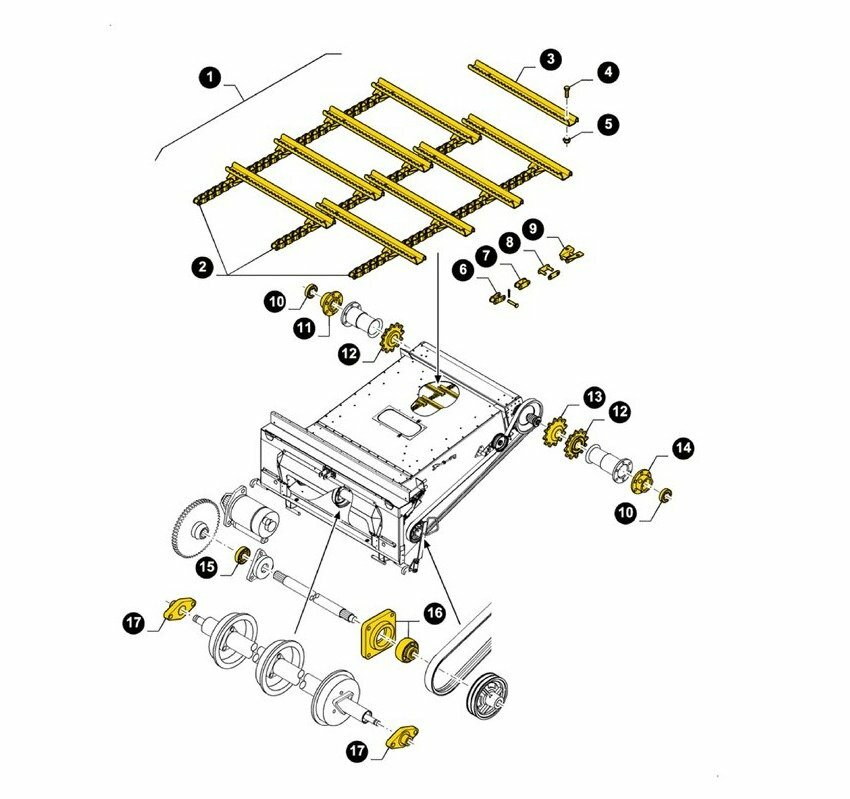

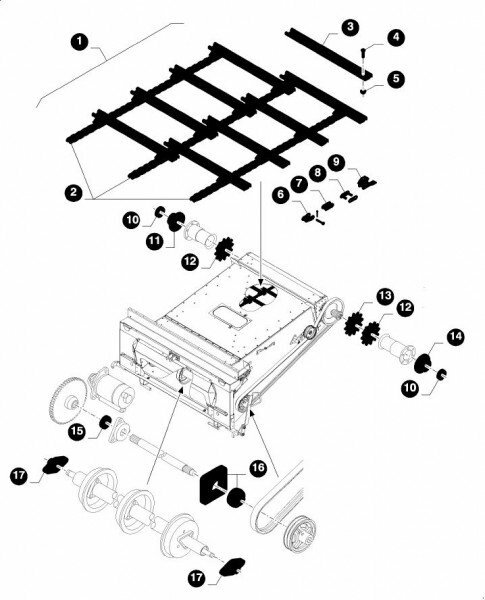

Ref	Qty	Part #	Part Description	Usage
1	1	89837405	CHAIN	Feeder chain, 3 chains, Incl 2 - 5

FOR TC5040E3 AND TC5050E3 ONLY
1	1	89837406	CHAIN	Feeder chain, 3 chains, Incl 2 - 5

FOR TC5060M3, TC5070E3, TC5080E3, TC5060H3, TC5070E4 AND TC5080E4 ONLY
1	1	84971281	CHAIN	Feeder chain, 3 chains, Incl 2 - 5

FOR TC5070E3, TC5080E3, TC5070E4 AND TC5080E4 ONLY
FOR LATERAL FLOTATION ONLY
2	1	89837402	SET OF CHAINS	Feeder chain, 3 chains, Incl 6 - 9
FOR TC5040E3 AND TC5050E3 ONLY
2	1	89837403	SET OF CHAINS	Feeder chain, 3 chains, Incl 6 - 9

FOR TC5060M3, TC5070E3, TC5080E3, TC5060H3, TC5070E4 AND TC5080E4 ONLY
2	1	84971285	SET OF CHAINS	Feeder chain, 3 chains, Incl 6 - 9

FOR TC5070E3, TC5080E3, TC5070E4 AND TC5080E4 ONLY
FOR LATERAL FLOTATION ONLY
3	16	439182	PROFILE

(S/N Range) before 659;
FOR TC5040E3 AND TC5050E3 ONLY
3	16	87738093	PROFILE

(S/N Range) after 660;
FOR TC5040E3 AND TC5050E3 ONLY
3	32	439178	PROFILE
(S/N Range) before 659;
FOR TC5060M3, TC5070E3, TC5080E3, TC5060H3, TC5070E4 AND TC5080E4 ONLY
3	32	84981409	PROFILE

(S/N Range) after 660;
FOR TC5060M3, TC5070E3, TC5080E3, TC5060H3, TC5070E4 AND TC5080E4 ONLY

3	34	439178	PROFILE

				(S/N Range) before 659;

FOR TC5070E3, TC5080E3, TC5070E4 AND TC5080E4 ONLY
WITH LATERAL FLOTATION
3	34	84981409	PROFILE

(S/N Range) after 660;

FOR TC5070E3, TC5080E3, TC5070E4 AND TC5080E4 ONLY
FOR LATERAL FLOTATION ONLY
4	AR	120103	BOLT
(S/N Range) before 659;
4	AR	120104	BOLT
(S/N Range) after 660;
5	AR	86629542	NUT

6	AR	40242	LINK
7	AR	86595253	LINK	Inside
8	AR	40241	LINK	Outside chain

8	AR	43278	LINK CHAIN	Inside
9	AR	9835830	CONNECTING LINK

10	2	210034	BALL BEARING	Feeder chain upper shaft

(S/N Range) after 634;
FOR TC5040E3, TC5050E3, TC5060M3, TC5070E3 AND TC5080E3 ONLY
10	2	210034	BALL BEARING	Feeder chain upper shaft

(S/N Range) after 634;
FOR TC5060H3, TC5070E4 AND TC5080E4 ONLY
11	1	9832254	BEARING HOUSING	RH
(S/N Range) after 634;
FOR TC5040E3, TC5050E3, TC5060M3, TC5070E3 AND TC5080E3 ONLY
11	1	9832254	BEARING HOUSING	RH

(S/N Range) after 634;
FOR TC5060H3, TC5070E4 AND TC5080E4 ONLY
12	2	84038624	DRIVEN SPROCKET	Outside

(S/N Range) after 634;
FOR TC5040E3, TC5050E3, TC5060M3, TC5070E3 AND TC5080E3 ONLY
12	2	84038624	DRIVEN SPROCKET	Outside

(S/N Range) after 634;

FOR TC5060H3, TC5070E4 AND TC5080E4 ONLY
13	1	84038657	DRIVEN SPROCKET	Central

				FOR TC5040E3 AND TC5050E3 ONLY
13	1	84038625	DRIVEN SPROCKET	Central

(S/N Range) after 634;
FOR TC5060M3, TC5070E3 AND TC5080E3 ONLY
13	1	84038625	DRIVEN SPROCKET	Central

				(S/N Range) after 634; FOR TC5060H3, TC5070E4 AND TC5080E4 ONLY

14	2	84023609	BEARING HOUSING	LH
				(S/N Range) after 634;
FOR TC5040E3, TC5050E3, TC5060M3, TC5070E3 AND TC5080E3 ONLY
14	2	84023609	BEARING HOUSING	LH

				(S/N Range) after 634;
				FOR TC5060H3, TC5070E4 AND TC5080E4 ONLY

15	1	84438926	BALL BEARING

16	1	89835682	FLANGE

16	1	9814384	BEARING ASSY	,

				(S/N Range) after 634;

FOR TC5070E3, TC5080E3, TC5070E4 AND TC5080E4 FOR FEEDER WITH 2HC LOWER SHAFT, LATERAL FLOTATION & DOUBLE PTO ONLY

17	2	9514667	FLANGED BEARING

				(S/N Range) after 634;
				FOR TC5040E3, TC5050E3, TC5060M3, TC5070E3
17	2	9514667	FLANGED BEARING
